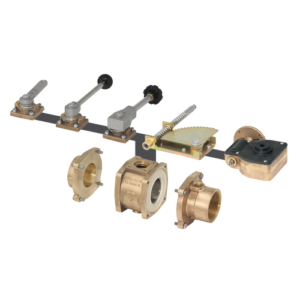

Unibody Apparatus Valves
The Unibody™ Valve family, with ball valve offerings from 1.5″ to 4.0″ and butterfly valves offered in 3.0″ to 8.0″, provides a solution to all of your apparatus valve needs. Ball valves utilize solid brass construction and incorporate a universal design to simplify both configuration and installation. Butterfly valves, either gear or electrically actuated, are offered in several material options for your specific application. All Unibody Valves, when paired with an E14X electric actuator, are compatible with the APEX™ Valve Controller.
|

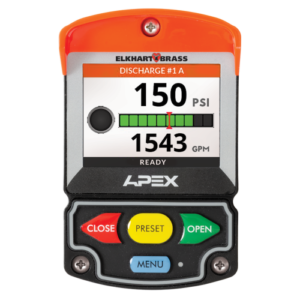

Apex Valves Controller
Ultimate Solutions. Ultimate Control
Combine customization capabilities with space saving design, add tactile keypad buttons and large, easy-to-read graphics and the result is an innovative new valve controller. APEX™ provides great benefits to OEMs as well as end users!
The design and versatility of the APEX Valve allow an OEM to save valuable pump panel space and adapt the controller to any application, while offering only one version of actuator. It takes the guesswork out of the ordering process. Operators will appreciate the large screen with high resolution graphics, while additional features including the adjustable “Target Pressure” indicator and daytime/nighttime screen modes deliver functionality never seen before in a valve controller. The APEX-S offers open/close and preset functions in a compact controller with 10-segment position indicating LEDs instead of the LCD screen.
|

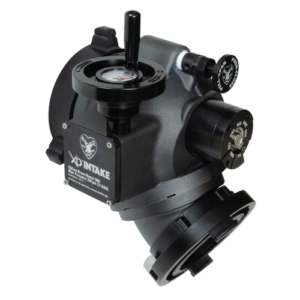

XD Intake Valves
The XD Intake Model 1902 by Elkhart Brass, is a nod to our founding year and a century-plus of innovation. This heavy-duty valve, engineered to regulate water supply intake to your pump, combines a robust design with cutting-edge technology. The Model 1902 symbolizes our enduring legacy and commitment to advancing firefighting equipment.
|
Single Body Apparatus Valves

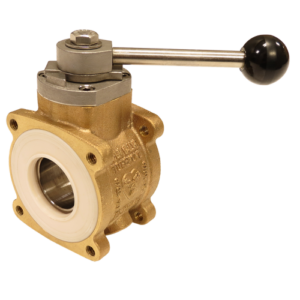

1.0″ and 1.5″ Single Body apparatus valves are equipped with an integral actuator of your choice – direct or remote. They’re designed especially for reliability, ease of installation, and ease of use.
The Single Body ball valve is designed to the industry standard dimensions. It features the option to select one of eight handle positions with removal of a single bolt. It’s that simple. Coupling the Single Body Valves with the Unibody apparatus line, Elkhart Brass is your total apparatus valve solution.
|

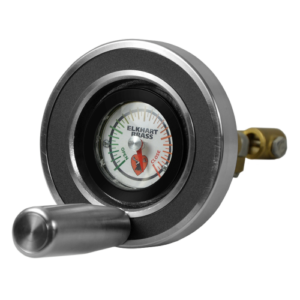

Unibody Handwheels GWP-4
– 4″ Handwheel diameter
– Position indication
– Stainless steel construction and finish
|

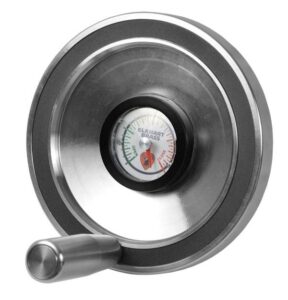

Unibody Handwheels GWP-6
– 6″ Handwheel diameter
– Position indication
– Stainless steel construction and finish
|
Unibody Handwheels GWR-5
– 5″ Handwheel diameter
– Panel mount
– Brass construction with chrome finish
– Furnished with panel bushing and two universal joints with protective rubber boots

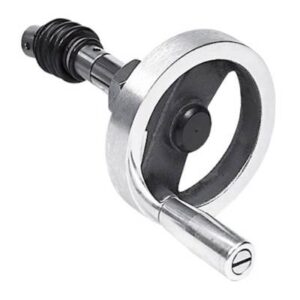

Unibody Handwheels GWR-6.5
6.5″ Handwheel diameter
Panel mount
Brass construction with chrome finish
Furnished with panel bushing and two universal joints with protective rubber boots
|
Unibody Handwheels GWD-5
5″ Handwheel diameter
Direct mount
Brass construction with chrome fini
|

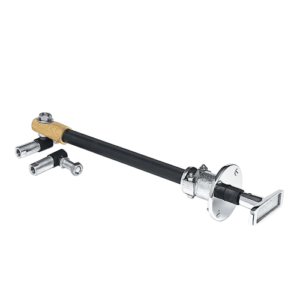

Tee Handle Remote Control Units
Push-pull control for the operation of in-line, quarter-turn ball valves or built-in eductors. Handle configuration allows identification/location label- to be inserted.
RC-7
– Non-locking handle
– 1″ Installation diameter (2.5 cm)
– Specify 11.3″, 9.8″, or 7.3″ Travel
– Chrome-plated case, brass handle with anodized aluminum extrusion rod
|

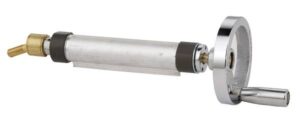

RC-10 – Slow Closing Valve Control
– Remote actuation of any ball valve
– Linear output screw-type actuator compliant with NFPA 1900 (as it pertains to slow-closing valves)
– Actuator and push-rod constructed of extruded aluminum alloys
– Precision needle thrust bearing and hardened thrust washers
– 5″ cast alloy handwheel with collet-type connection allows for easy compact thru-panel installation (either new or retrofit)
– Furnished with threaded ball swivel joint at end of drive rod
– Installation diameter: 1.03″ (pump panel) (2.6 cm)
– Length: 16.4″ (retracted) and 21.4″ (extended) (41.6 cm or 54.3 cm)
|

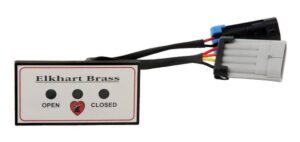

Optional Valve Status Indicator
– For use with RC-10 – Slow closing valve control handle
– Requires minimal pump panel space
– Tri-color indicators: red (closed), yellow (gated) and green (open)
– Feature 100,000-hour, ultra-bright LEDs mounted within an optical filter to maximize visibility in bright sunlight
– NEMA 4 rated
– Chrome bezel included
|
RC Accessories|

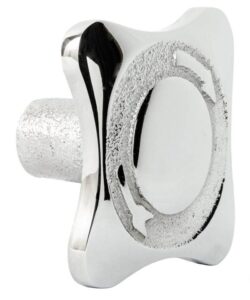

775-5 – Handle
– For remote control screw-type gate valve or gear-driven valve
– Bored for .375″ rod (0.95 cm)
– Material: Cast brass with chrome-plated finish
– Diameter: 4″ (10.1 cm)
|
RC Accessories

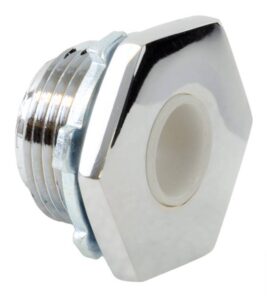

775-11 – Rod Guide
– For centering and guiding remote control rod
– Nylon sleeve for 0.5″ rod (1.2 cm)
– Material: Cast brass with chrome-plated finish
– Diameter: 1.5″ (3.8 cm)
|
RC Accessories

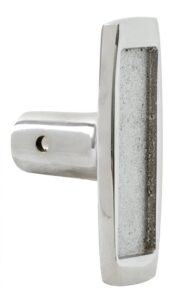

775-15 – Tee Handle
– For use with push-pull rods to remotely operate in-line, quarter-turn ball valves or built-in eductors
– Bored for 0.5″ rod (1.2 cm)
– Can be threaded to .500″ — 13 or .500″ — 20 (specify)
– Handle configuration allows identification/location label to be inserted
– Material: Cast brass with chrome-plated finish
– Height: 1.1″ (2.7 cm)
|
Suction Intake Valves

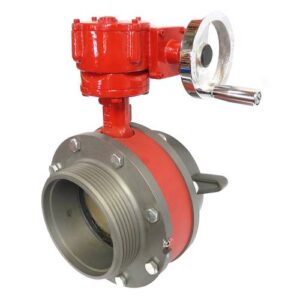

Elkhart Brass offers a special cast iron, butterfly valve with hard coated aluminum end caps for use as a suction intake in apparatus applications |
Miscellaneous Apparatus Valves

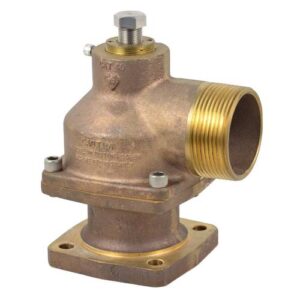

Model 40 Relief Valves
– For use on the suction side of the pump or on a designated LDH discharge outlet
– Material: Choice of cast brass or hard coated aluminum with stainless steel mechanism
– Rubber seat to ensure positive vacuum seal
– Adjustable pressure of 75-250 psi (pre-set to 125 psi) 5 bar to 17 BAR (pre-set to 8.5 BAR)
|
