Angus Fire Monitors |
Portable Ground Monitor (PGMI) |
The streamline Angus Fire Portable Ground Monitor has been designed to provide a highly effective aspirated foam blanket in the event of a fire when using F900/ H branchpipes and Angus Portable Inductors.
The ground monitor combines very light-weight with excellent stability
Benefits:
– Lightweight
– Low maintenance
– Compactly folds for vehicle stowage
– Low pressure loss design
– Highly durable – corrosion resistant materials
Application
– Intended for use in the medium output range
– Localised cooling and portable water monitor application for all industrial/municipal applications
|
|
Bipod Foam Monitor |
Angus Fire’s Bipod Foam Monitors offer entry level fire fighting for protecting hydrocarbon and other risks that require finished foam applied from a safe distance. They are easily transportable, lightweight, self-inducing portable low expansion foam units.
The Bipod Foam Monitors are easily deployed by two firefighters.
Benefits:
– Suitable for use with all Angus foam concentrates
– Easily transportable
– Available in two capacities
– Adjustable support legs
Application
– Small tank farms
– Bund
– Small tank protection
– Rail and truck loading gantries, waste and oil pits
|
|

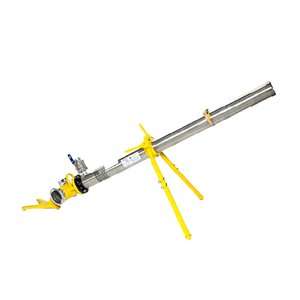

HI-COMBAT Titan Bipod Monitor |
Angus Fire’s Hi-Combat Titan Monitor is a high performance, low expansion monitor system for fighting fires in larger diameter storage tanks. The Titan will put foam onto the top of a tank 20 meters high from a distance of 30 meters. To achieve this pressure losses through the monitor are kept to a minimum through the use of 4″ supply hose.
Flow throughput is 4500 lpm @ 7bar.
The Bipod Foam Monitors are easily deployed by two firefighters.
Benefits:
– Suitable for use with all Angus foam concentrates
– Easily transportable
– Adjustable support legs
Application
– Small tank farms
– Bund
– Medium size tank protection
– Rail and truck loading gantries, waste and oil pits
|
|

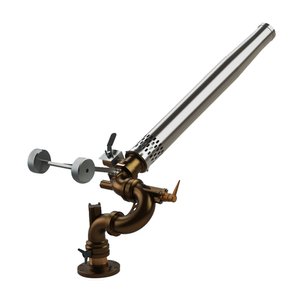

HM80 with LTC Cannon |
Angus Fire’s Long Throw LTC Cannons have been designed for a wide range of fire fighting foam applications. Use with the Streamline range of Angus monitors, the LTC cannons produce low expansion foam with typical expansion ratios of 6:1 to 10:1 depending on foam concentrate selected.
Benefits:
– Self Inducing versions available for localised foam induction
– Exceptional operational reliability
– Long life and maintenance free
Application
– Bund protection
– Small Tank Farms
– Jetty or discharge/loading areas
– Shallow fires
|
|
HM80 Hand Monitor |
Angus Fire’s HM-80 Hand Monitor is designed to provide optimised efficiency that can be orientated in either an upright configuration, or compact, low profile mode making this monitor particularly suitable in areas where space is limited. The HM-80 Monitor has a long throw performance when using the Long Throw (LTN) nozzles or (LTC) cannons are fitted.
Benefits
– Long throw performance due to design
– Exceptional long service life in harsh environments
– Exceptional operational reliability
Application
– Suitable for installation:
– Monitor Towers
– Jetty/Gantry/Loading & Discharge areas
– Offshore Platforms and Helidecks
– Fuel Terminals & Tank farms for Bud/Dyke protection
|
|

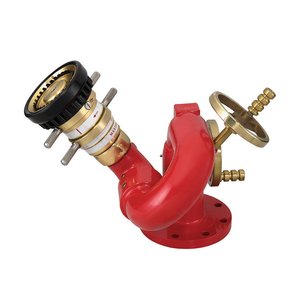

HI-COMBAT GMB48 Geared Monitor |
Angus Fire Geared Monitors are ideal for protecting a variety of small, high-risk areas in a terminal at different heights and distances. In fixed monitor applications, geared monitors can be used on risks demanding high application rates of water or foam. As the geared hand wheels make it easy to control the monitor precisely.
Benefits
– Simple and reliable design
– Low maintenance
– Ideal for Industrial, offshore and other marine applications
– Suitable for use where explosive atmospheres may be present Application
Suitable for installation:
– Trailer mounting
– Terminal installations – small fuel storage tanks and bunds for example
– Other areas where space is limited.
|
|
HI-COMBAT GMB75 Geared Monitor |
Angus Fire Geared Monitors are ideal for protecting a variety of small, high-risk areas in a terminal at different heights and distances. In fixed monitor applications, geared monitors can be used on risks demanding high application rates of water or foam. As the geared hand wheels make it easy to control the monitor precisely.
Benefits
– Simple and reliable design
– Low maintenance
– Ideal for Industrial, offshore and other marine applications
– Suitable for use where explosive atmospheres may be present Application
Suitable for installation:
– Trailer mounting
– Terminal installations – small fuel storage tanks and bunds for example
– Other areas where space is limited.
|
|

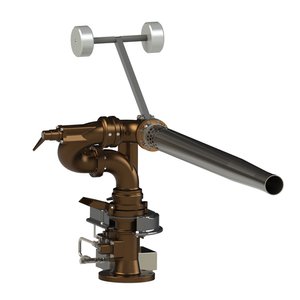

OM80 Oscillating Monitor |
Angus Fire’s Oscillating monitors are often found protecting the most hazardous area of a site or platform. They can be turned on remotely via a water valve allowing the user to remain at a safe distance. The automated sweeping action enables the monitor to cover a wide risk area. Angus Oscillating monitors are supplied with a permanent pelton wheel water driven motor, which provides the power for the horizontal oscillation movement.
Benefits:
– Exceptional operational reliability
– Long life
– Low maintenance
– Compact and low profile
– No outside power source is required
– Rated for use in potentially explosive atmospheres
Application
Suitable for installation:
– On towers
– Aircraft hangers
– Offshore platforms for helideck protection
– Areas where space is limited
|
|
Monsoon Remote Control Monitor (AMRC) |
Angus Monsoon Range
Angus Monsoon is a premium range of approved monitors and nozzles, designed and built for fire protection use in the harshest of environments, where demanding specifications combined with rugged materials of construction are paramount to provide longevity of service alongside powerful, uncompromising performance
Monsoon Remote Control Monitor
AMRC is a fully electric remote-controlled monitor with a single water way body with flows up to 20000 lpm (5200 gpm) and may be base flanged 3”, 4”, 6” or 8” UNI or ANSI. Horizontal / Vertical movements driven by electric actuators certified to ATEX (or IECEx) suitable for installation within hazardous areas classified ATEX zone 1 G and zone 2 1 D applications – with IP 67 rating. The AMRC is to be used with a combination of the below control/command options:
Monsoon Main Control Module (AMMCM)
These panels are used to remotely control all movements of the AMRC monitors, including the automation of the water and foam isolation valves.
- Local Push Button remote control and power unit to be used in hazardous location with ATEX and IP 67 rating. Can be used to control multiple monitors and can be linked to a Podium unit in a safe location to provide multiple control locations.
- Desktop/Podium remote control and power unit for safe operation location with IP 55 rating. Can be used as the master control panel or as a slave panel. Typical Joy Stick and push button monitor control configurations.
Monsoon Main Control Module
Monsoon Monitor Interface Box (AMMIB)
The AMMIB is specifically designed to power remote controlled monitors (AMRC) that permit the composition of various control architectures for the monitor system. Construction suitable for installation within either Safe Areas or in Classified Hazard areas
Monsoon Monitor Interface Box
Monsoon Valve Interface Box (AMVIB)
The AMVIB is to be used in conjunction with Main Control Module (AMMCM). It is specially developed for the power supply and control of deluge and isolation valves. Construction suitable for installation within either Safe Areas or in Classified
Monsoon Valve Interface Box
Monsoon Wireless Unit Kit (AMWK)
The AMWK is a further device used specifically to control AMRC monitors together with the opening and closing of their isolation valves in a remote application by use of fibre optic technology – options allow for the receiver and the transmitter installation in safe or hazardous areas in according to ATEX or IECEx directive
Optional Voltage, Phasing and Hertz cycles available.
Monsoon Wireless Unit Kit
Application:
The Angus Monsoon range is ideally suited for fire hazards present in:
- Fuel Storage Terminals & Refineries
- Chemical Processing Plants
- Marine terminals & Loading Jetties
- FPSOs and FLNGs
- Offshore Platforms & Helicopter Landing Pads
- Aircraft Hangars
- LNG/LPG Terminals
Approvals & Listings
FM approved – FM 1421 & FM 5511 – FM approvals are for the listed monitors and nozzles
|
|

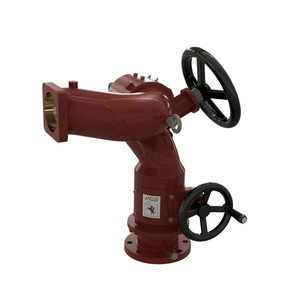

Monsoon Wheel Operated Monitor (AMW) |
Monsoon Wheel Operated Monitor (AMW)
Angus Monsoon is a premium range of approved monitors and nozzles, designed and built for fire protection use in the harshest of environments, where demanding specifications combined with rugged materials of construction are paramount to provide longevity of service alongside powerful, uncompromising performance.
Monsoon Wheel Operated Monitor is a geared hand wheel operated monitor with single water way body. Simple to operate, the AMW monitor is capable of flows up to 20,000 lpm (5,200 gpm), with inlet flanges of 3”, 4”, 6” or 8” UNI or ANSI. Monitor movements are smoothly made by rotating easy to operate hand wheels through the vertical & horizontal planes.
Application:
The Angus Monsoon range is ideally suited for fire hazards present in:
- Fuel Storage Terminals & Refineries
- Chemical Processing Plants
- Marine terminals & Loading Jetties
- FPSOs and FLNGs
- Offshore Platforms & Helicopter Landing Pads
- Aircraft Hangars
- LNG/LPG Terminals
Approvals & Listings
FM approved – FM 1421 & FM 5511 – Approved to a working pressure of 16 bar
|
|

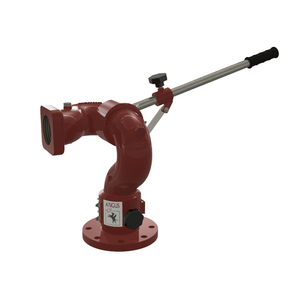

Monsoon Manual Monitor (AMM) |
Monsoon Hand Lever Monitor (AMM)
Angus Monsoon is a premium range of approved monitors and nozzles, designed and built for fire protection use in the harshest of environments, where demanding specifications combined with rugged materials of construction are paramount to provide longevity of service alongside powerful, uncompromising performance.
Monsoon Hand Lever Monitor is a hand lever operated, manual monitor with single water way body. Easy to operate, the AMM monitor is capable of flows up to 4000 lpm (1000 gpm) with inlet flanges of 3” or 4” UNI or ANSI.
Application:
The Angus Monsoon range is ideally suited for fire hazards present in:
- Fuel Storage Terminals & Refineries
- Chemical Processing Plants
- Marine terminals & Loading Jetties
- FPSOs and FLNGs
- Offshore Platforms & Helicopter Landing Pads
- Aircraft Hangars
- LNG/LPG Terminals
Approvals & Listings
FM approved – FM 1421 & FM 5511 – Approved to a working pressure of 16 bar
|
|

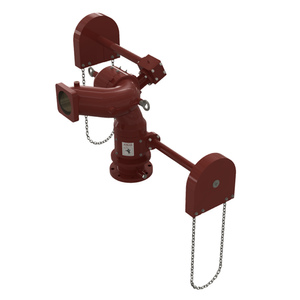

Monsoon Chain Operated Monitor (AMC) |
Monsoon Chain Operated Monitor (AMC)
Angus Monsoon is a premium range of approved monitors and nozzles, designed and built for fire protection use in the harshest of environments, where demanding specifications combined with rugged materials of construction are paramount to provide longevity of service alongside powerful, uncompromising performance.
Monsoon Chain Operated Monitor is a chain operated monitor for elevated installations, with single water way body. Easy to operate, the AMC is capable of delivering flows up to 20,000 lpm (5,200 gpm) with inlet flanges of 3”, 4”, 6” or 8” UNI or ANSI. Upwards, downwards and rotational movement via pulleys and chains – secured by the worm gear itself. Chains in galvanised carbon steel, length 11mts.
Application:
– The Angus Monsoon range is ideally suited for fire hazards present in:
– Fuel Storage Terminals & Refineries
– Chemical Processing Plants
– Marine terminals & Loading Jetties
– FPSOs and FLNGs
– Offshore Platforms & Helicopter Landing Pads
– Aircraft Hangars
– LNG/LPG Terminals
Approvals & Listings
FM approved – FM 1421 & FM 5511 – Approved to a working pressure of 16 bar
|
|

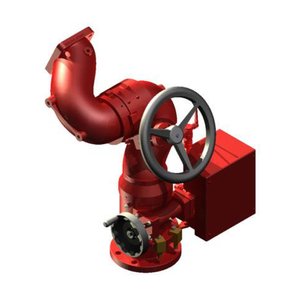

Monsoon Oscillating Monitor (AMWO) |
Monsoon Oscillating Monitor (AMWO)
Angus Monsoon is a premium range of approved monitors and nozzles, designed and built for fire protection use in the harshest of environments, where demanding specifications combined with rugged materials of construction are paramount to provide longevity of service alongside powerful, uncompromising performance.
Monsoon Oscillating Monitor is a self-oscillating monitor designed to automatically sweep on the horizontal plane, with a manual hand wheel override operation. Simple to operate, the AMWO monitor is capable of flows up to 20,000 lpm (5,200 gpm), with inlet flanges of 3”, 4”, 6” or 8” UNI or ANSI.
Application:
The Angus Monsoon range is ideally suited for fire hazards present in:
- Fuel Storage Terminals & Refineries
- Chemical Processing Plants
- Marine terminals & Loading Jetties
- FPSOs and FLNGs
- Offshore Platforms & Helicopter Landing Pads
- Aircraft Hangars
- LNG/LPG Terminals
Approvals & Listings
FM approved – FM 1421 & FM 5511 – Approved to a working pressure of 16 bar |
|

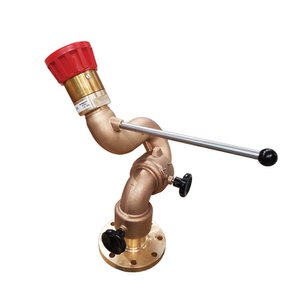

MM1 Hand Monitor |
Angus Fire Hand Monitors are lightweight, compact and cost effective manual monitor manufactured in corrosion resistant materials (Gunmetal/Bronze). They have full 360°rotation with generous elevational movement adjustment controlled by a stainless steel positioning handle. The MM1 is ideal for multiple industrial water cooling applications.
Benefits
– Exceptional operational reliability
– Long life and maintenance free
Application
Suitable for installation:
– Trailer mounting
– Terminal installations – small fuel storage tanks and bunds for example
– Other areas where space is limited.
|
|
FWM Foam Water Geared Monitor |
FWM Foam Water Geared Monitor
Angus Fire Geared Monitors are ideal for protecting a variety of small, high-risk areas in a terminal at different heights and distances. In fixed monitor applications, geared monitors can be used on risks demanding high application rates of water or foam. As the geared hand wheels make it easy to control the monitor precisely.
Benefits
– Simple and reliable design
– Low maintenance
– Ideal for Industrial, offshore and other marine applications
– Suitable for use where explosive atmospheres may be presentApplication
Suitable for installation:
– Trailer mounting
– Terminal installations – small fuel storage tanks and bunds for example
– Other areas where space is limited. |
|
OMM1 Oscillating Monitor |
OMM1 Oscillating Monitor
Angus Fire’s Oscillating monitors are often found protecting the most hazardous area of a site or platform. They can be turned on remotely via a water valve allowing the user to remain at a safe distance. The automated sweeping action enables the monitor to cover a wide risk area. Angus Oscillating monitors are supplied with a permanent pelton wheel water driven motor, which provides the power for the horizontal oscillation movement.
Benefits:
– Exceptional operational reliability
– Long life
– Maintenance free
– Water powered oscillation
– No outside power source is required
Application
Suitable for installation:
– On towers
– Aircraft hangers
– Offshore platforms for helideck protection
– Areas where space is limited.
|
|

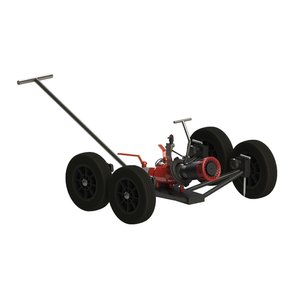

Mosquito Ground Monitor |
Mosquito Ground Monitor
Angus Fire’s Mosquito Monitor has been specially designed to combine very light weight with excellent stability. It is robust and effective and can very quickly be brought into use to fight fires. It is intended for use in the medium output range, typically up to 400 gpm. (1800 lpm.) anchor spikes must be used at all times to assist in resisting jet reaction forces.
Benefits:
– Lightweight
– Low maintenance
– Compact
– Low pressure loss design
– Highly durable – corrosion resistant materials
Application
– Compactly folds for vehicle stowage
– Intended for use in the medium output range
|
For more detailed information contact :
Yen Lee Fireweld Pte Ltd
1 Corporation Drive, #09-03 Revv , Singapore – 619775
Tel : (65) 62909890 Fax : (65) 62961444
E-mail – yenlee@fireweld.com.sg |
